| Fittings | Pipes | |
|---|---|---|
| Material | Unplasticized Polyvinyl Chloride (UPVC) | Unplasticized Polyvinyl Chloride (UPVC) |
| Colour | Light Grey | Light Grey |
| Reference Standards | IS 14735 : 1999 | IS 13592 : 2013 |
| Variants | Type 'A' & Type 'B' |
| Used for Ventilation & Rain Water System | Used for Soil & Waster Discharge System | |||||
|---|---|---|---|---|---|---|
| Nominal Diameter | Mean Outside Diameter | Type A Wall Thickness | Type B Wall Thickness | |||
| Min. | Max. | Min. | Max. | Min. | Max. | |
| 75 | 75 | 75.3 | 1.8 | 2.2 | 3.2 | 3.8 |
| 90 | 90 | 90.3 | 1.9 | 2.3 | 3.2 | 3.8 |
| 110 | 110 | 110.4 | 2.2 | 2.7 | 3.2 | 3.8 |
| 160 | 160 | 160.5 | 3.2 | 3.8 | 4.0 | 4.6 |

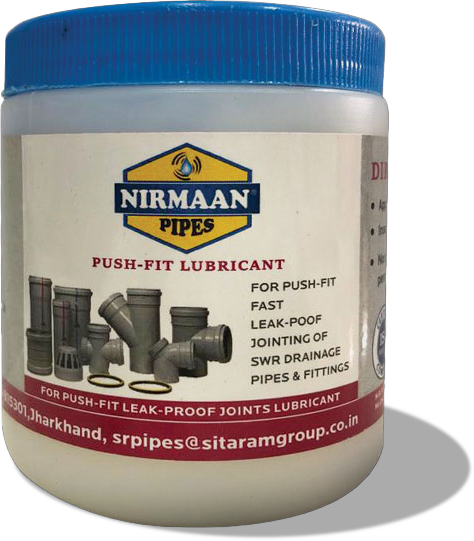

| Sizes | No. of Pcs per Box |
|---|---|
| 50 gms | 160 |
| 100 gm | 100 |
| 250 gms | 40 |
| 500 gms | 20 |
| 1000 gms | 10 |
Nirmaan pipes can be used in several applications as mentioned below:
Advanced drainage solutions for residential and commercial complexes.

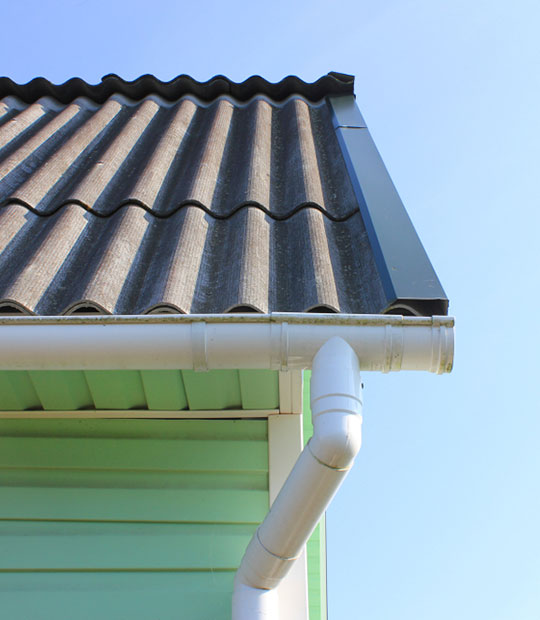

Integrated rooftop gutter connections for efficient rainwater management.

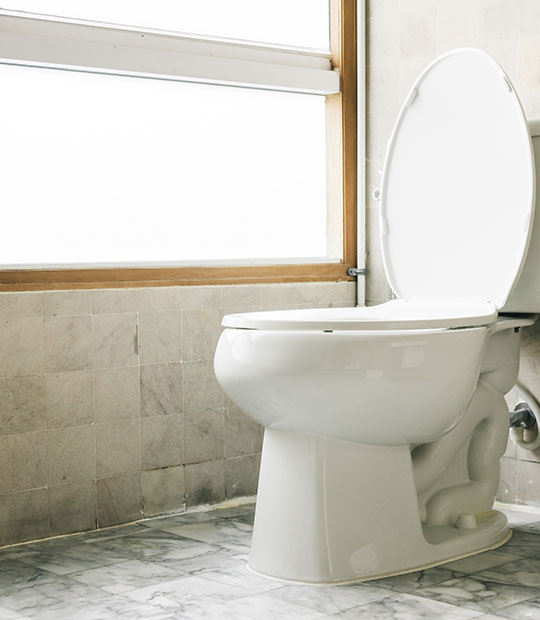

Comprehensive waste transport system connecting multiple discharge points to main drainage lines, handling both soluble and insoluble waste.
